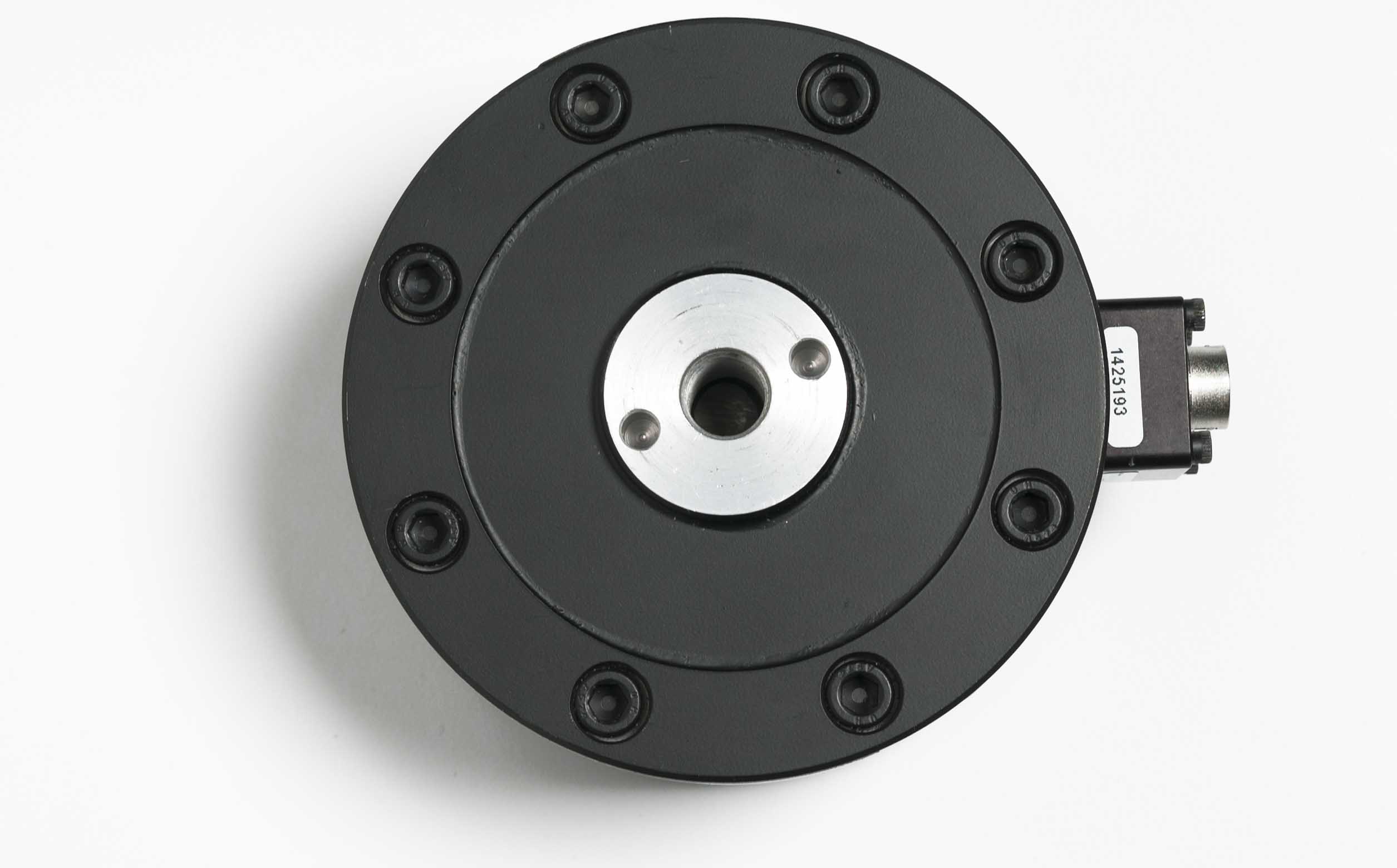

Low Profile Shear Beam Load Cells For Criterion 40 Electromechanical Systems
Designed for Criterion Series 40 Electromechanical Systems, these low-profile shear beam load cells measure moderately high axial loads using a unique design of four embedded strain gages, and are ideal for tension and compression testing of hard metals and composites.
Applications
Test types
Test specimens
Brochures & Datasheets
Technical Specifications
| Model | Part Number | Type | Force Rating | Accuracy | Overload Protection | Mounting Thread |
|---|---|---|---|---|---|---|
| LPS.103 | 057-481-501 | Low profile shear beam | 1 kN | class 0.5 from 1 to 100% | 150% of capacity | M12 x 1.25 |
| LPS.253 | 057-481-502 | Low profile shear beam | 2.5 kN | class 0.5 from 1 to 100% | 50% of capacity | M12 x 1.25 |
| LPS.503 | 057-481-503 | Low profile shear beam | 5 kN | class 0.5 from 1 to 100% | 150% of capacity | M12 x 1.25 |
| LPS.104 | 057-481-504 | Low profile shear beam | 10 kN | class 0.5 from 1 to 100% | 150% of capacity | M12 x 1.25 |
| LPS.204 | 057-481-506 | Low profile shear beam | 20 kN | class 0.5 from 1 to 100% | 150% of capacity | M12 x 1.25 |
| LPS.304 | 057-481-505 | Low profile shear beam | 30 kN | class 0.5 from 1 to 100% | 150% of capacity | M12 x 1.25 |
| LPS.504 | 057-481-701 | Low profile shear beam | 50 kN | class 0.5 from 1 to 100% | 150% of capacity | M27 x 2 |
| LPS.105 | 057-481-702 | Low profile shear beam | 100 kN | class 0.5 from 1 to 100% | 150% of capacity | M27 x 2 |
| LPS.155 | 057-481-703 | Low profile shear beam | 150 kN | class 0.5 from 1 to 100% | 150% of capacity | M27 x 2 |
| LPS.205 | 057-481-901 | Low profile shear beam | 200 kN | class 0.5 from 1 to 100% | 150% of capacity | M36 x 2 |
| LPS.305 | 057-496-801 | Low profile shear beam | 300 kN | class 0.5 from 1 to 100% | 150% of capacity | M36 x 2 |
| LPS.505 | 058-497-801 | Low profile shear beam | 500 kN | class 0.5 from 1 to 100% | 150% of capacity | M72 x 2 |
| LPS.605 | 058-497-802 | Low profile shear beam | 600 kN | class 0.5 from 1 to 100% | 150% of capacity | M72 x 2 |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
