MTS Systems — S-Beam, Low Profile

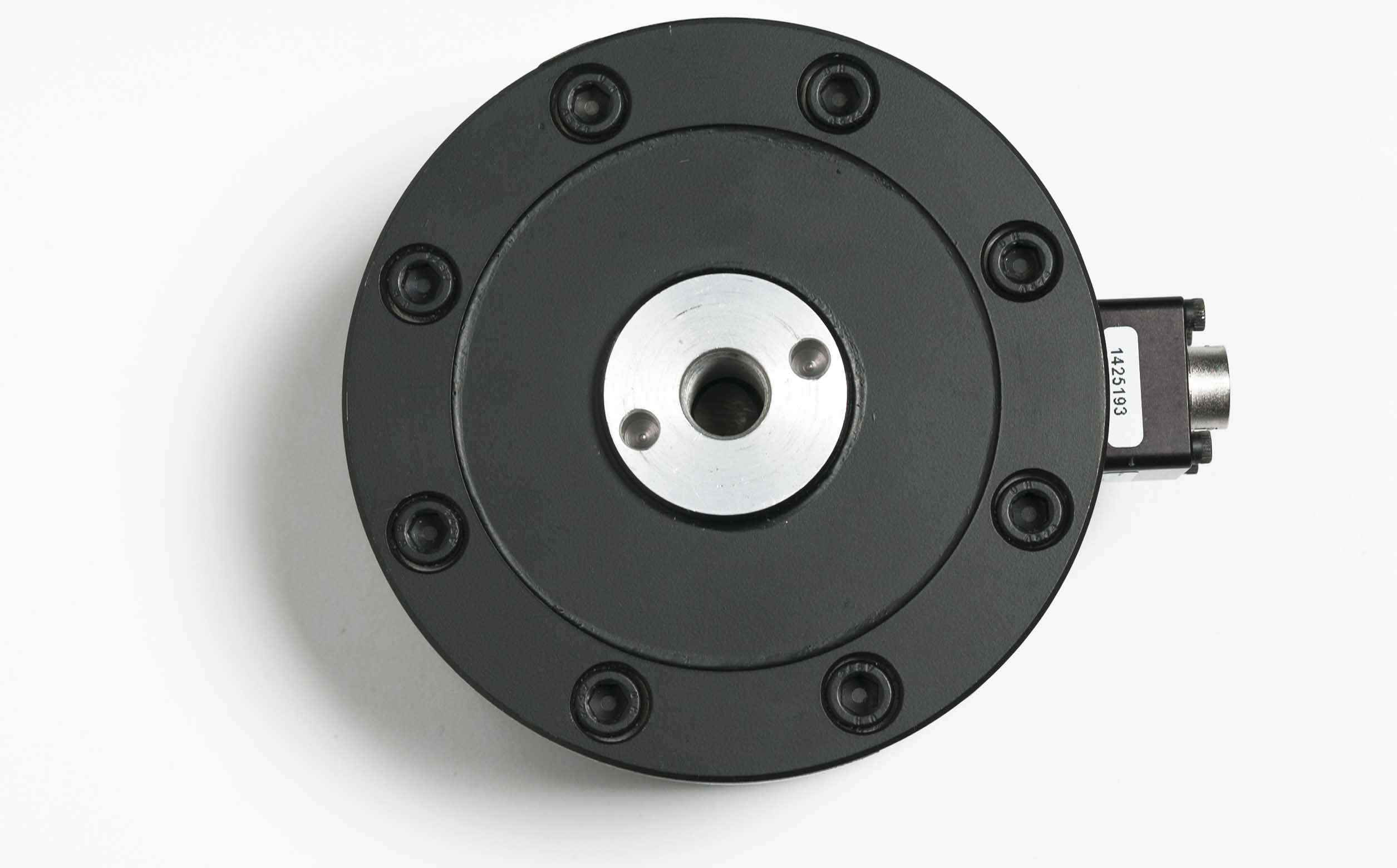

Insight Universal Test System Load Cells
Highly accurate load cells for MTS Insight and ReNew universal test systems are designed to offer world-class stiffness, stability, and linearity. They overload and side load protection, and are designed with built-in shunt resistors to facilitate regular verification of accuracy using calibration routines featured in MTS software.
Applications
Test types
Test specimens
Brochures & Datasheets
Technical Specifications
| MODEL | FORCE CAPACITY | THREAD SIZE | PART NUMBER |
|---|---|---|---|
| S-Beam | 5 N (1 lbf) | M6x1 | 056-932-601 |
| S-Beam | 10 N (2 lbf) | M6x1 | 056-932-602 |
| S-Beam | 25 N ( 5 lbf) | M6x1 | 056-932-603 |
| S-Beam | 50 N (10 lbf) | M6x1 | 056-932-604 |
| S-Beam | 100 N (20 lbf) | M6x1 | 056-932-605 |
| S-Beam | 250 N (50 lbf) | M6x1 | 056-932-606 |
| S-Beam | 500 N (110 lbf) | M6x1 | 056-932-701 |
| S-Beam | 1 kN (220 lbf) | M6x1 | 056-932-702 |
| S-Beam | 2 kN (450 lbf) | M6x1 | 056-932-703 |
| Low Profile | 125 N (25 lbf) | M6x1 | 056-932-801 |
| Low Profile | 250 N (50 lbf) | M6x1 | 056-932-802 |
| Low Profile | 500 N (110 lbf) | M6x1 | 056-932-803 |
| Low Profile | 1 kN (225 lbf) | M12x1.25 | 056-932-901 |
| Low Profile | 2.5 kN (550 lbf) | M12x1.25 | 056-932-902 |
| Low Profile | 5 kN (1,100 lbf) | M12x1.25 | 056-932-903 |
| Low Profile | 10 kN (2,200 lbf) | M12x1.25 | 056-932-904 |
| Low Profile | 30 kN (6,600 lbf) | M12x1.25 | 056-932-905 |
| Low Profile | 50 kN (11,000 lbf) | M16x1.5 | 056-933-201 |
| Low Profile | 100 kN (22,500 lbf) | M27x2 | 056-933-001 |
| Low Profile | 150 kN (33,750 lbf) | M27x2 | 056-933-002 |
| Low Profile | 200 kN (45,000 lbf) | M36x2 | 056-933-301 |
| Low Profile | 300 kN (67,500 lbf) | M36x2 | 056-933-101 |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
